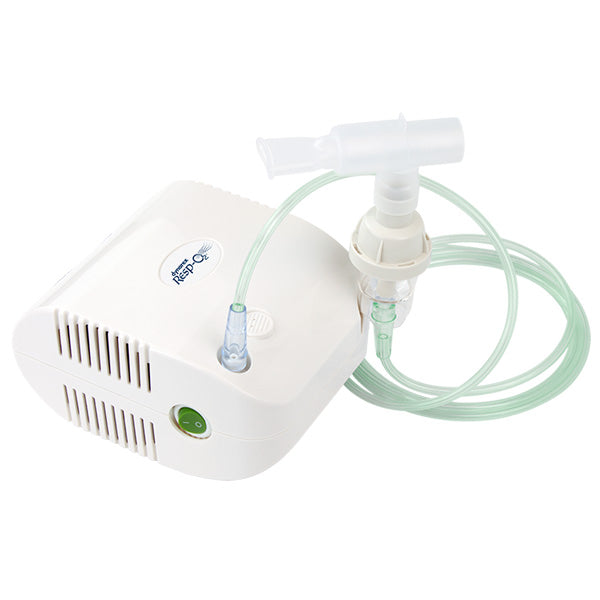

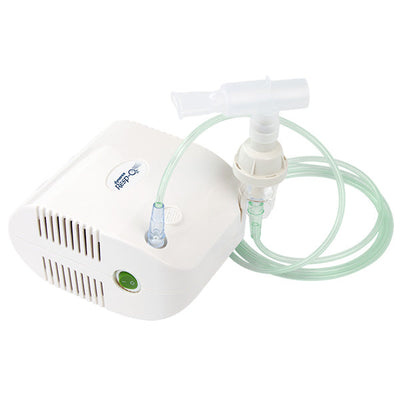

Nebulizer Machine Compressor for Respiratory Therapy

The Ultra light portable nebulizer machine compressor is highly effective for respiratory treatments related to asthma, allergies, and a variety of other disorders. This nebulizer machine includes all accessories including an air tube, mouth piece, filters, pediatric, and adult mask and even features a convenient carry handle.

• Small Volume Nebulizer (SVN)
• Converts prescribed medication into an aerosol mist for easy inhalation

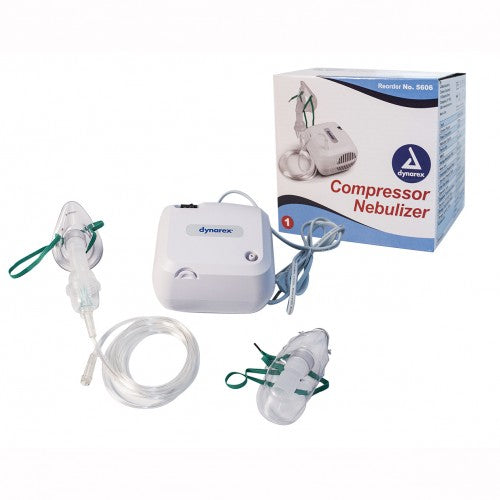

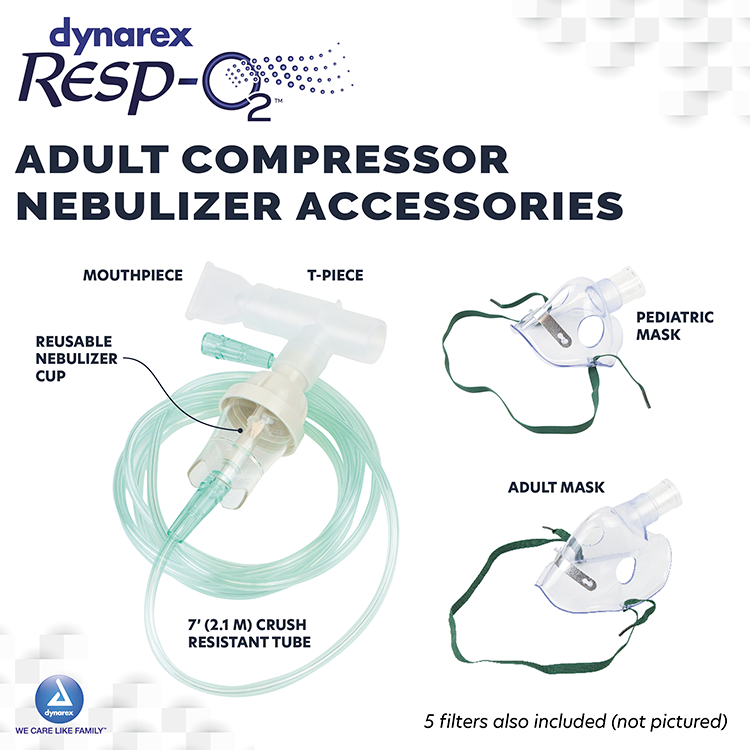

• Includes air tube, mouthpiece, filters (5 pcs), adult mask and child mask
• 5605 designed with a convenient storage compartment
• 5616 designed with an international plug (220V/50Hz)
• 3-Year Limited Warranty
• Compare Dynarex Elite Compressor Nebulizer (5605)to Drive Medical AeroNeb™ by Drive DeVilbiss
• Compare Dynarex Compressor Nebulizer (5616) to Probasics RiteNeb 3™ by PMI with an additional face mask.

Medical Conditions: Asthma, Emphysema (form of chronic obstructive pulmonary disease), Cystic fibrosis, Pneumonia, Pulmonary edema, Pulmonary embolism, and Severe acute respiratory syndrome.
Potential Action: Deliver effective aerosol treatment therapy medication into the airways.
Possible Signs and Symptoms a nebulizer machine is Required: Chest Tightness; Coughing with thick, clear, or yellow mucus; Cyanosis (late sign); Diaphoresis; Nasal flaring; Pursed-lip breathing; Sudden dyspnea, Wheezing accompanied by coarse rhonchi; Crackles and decreased breath sounds; Shortness of breath.
Causes: Obstruction or narrowing of the airways, which are typically inflamed and hyperresponsive to a variety of stimuli.

Directions for Use:
1. Place your compressor nebulizer on a flat and stable surface. Be sure that you can easily reach the controls when you are seated.
2. Gently twist the top part of the nebulizer counterclockwise to disassemble the nebulizer.
3. Fill the bottom section of the nebulizer with the medication prescribed by your physician. Be sure that the cone is put inside the bottom section.
4. Gently twist the top part clockwise to reassemble the nebulizer. Be sure the two sections fit well.
5. Attach one end of air tube to the base of the nebulizer.
6. Attach the other end of air tube to the tube connector located on the front of the compressor.
7. Attach mouthpiece of mask per your choice to the top section of nebulizer.
8. Plug the power cord into an appropriate electrical outlet. Make sure at this stage, the power witch is at "OFF" status.
9. Press power switch to begin your prescribed treatment.

Filter change:
1. Do not use cotton or any other materials. Do not wash or clean the filter. Only use filters supplied by your distributor. And do not operate without a filter.
2. Change the filter every 30 days or when the filter turns gray.

• Specifications:
• Power: 120V 60 Hz
• Current: 1.3A
• Medication capacity: 6ml
• Particle size: >75% 0.5~5um
• MMAD: 2.97 um
• Maximum Medication capacity: 13ml (cc)
• Average Nebulization Rate: Min 0.2ml/min
• Compressor Pressure Range: 30 to 50 Psi
• Operating Pressure Range:9.5 to 16 Psi
• Liter Flow Range: 6 ~ 10 lpm
• Dimension (L x W x H): 156 x 140 x 90mm (6.1" x 5.5" x 3.5")
• Weight: 2.7 lbs (1.kg)

Experience the convenience and effectiveness of portable respiratory treatments at a fraction of traditional costs with the Portable Nebulizer Compressor from Dynarex. This effective unit comes complete with all the accessories necessary for rapid relief of respiratory concerns caused by asthma, allergies, and other conditions
