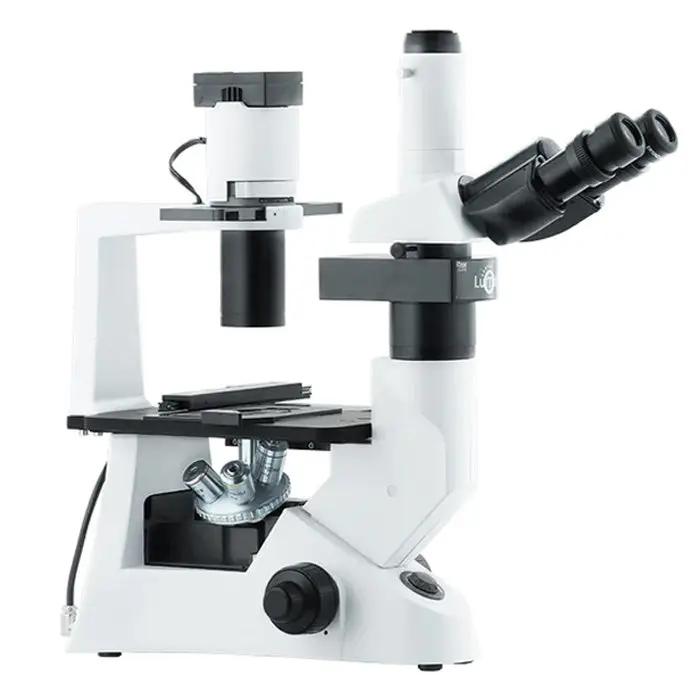

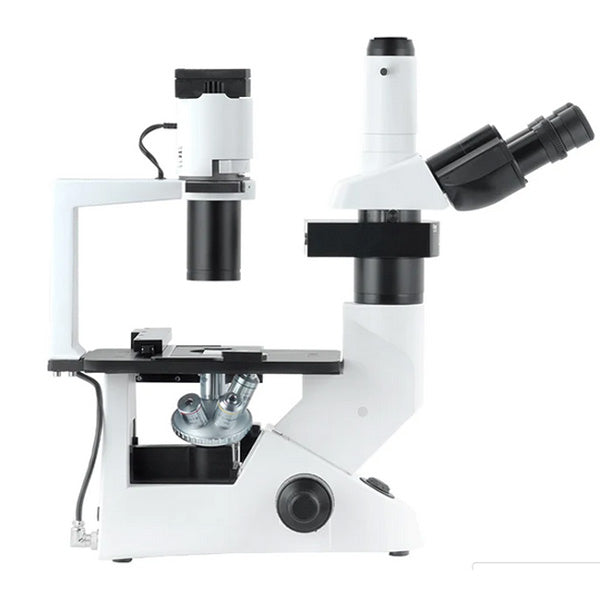

Inverted Infinity Microscope

The LW Scientific Inverted Infinity Microscope is a high-performance microscope designed for use in biological and clinical research. It has a unique design where the objectives are mounted underneath the stage, allowing large and thick samples to be easily viewed and manipulated. This inverted configuration also makes it ideal for live cell and tissue imaging. The microscope features an infinity-corrected optical system, which provides improved clarity and resolution, and a trinocular head for easy viewing and image capturing. The LW Scientific Inverted Infinity Microscope is suitable for a wide range of applications, including cell culture, microinjection, and fluorescence microscopy.

The LW Scientific Inverted Microscope is able to perform intricate and varied applications for vital tissue cultures. It is perfect for observation and education or for professional research in a clinical lab. Pathologists, biologists and medical researchers naturally choose this microscope. Accessories included: Green, blue and neutral filters, dust cover, immersion oil, manual and warranty card.

Head:

• Trinocular head
• Inclination 30º
• Interpupillary distance 48-75mm
• Ideal for video/photography
• Centering eyepiece for phase objective
• EW 10X /22 extra wide field eyepieces

Focus:

• Coarse adjustment: range of 37.7mm
• Fine adjustment: 0.002mm per rotation
• Vertical objective movement

Nosepiec

• Quintuple nosepiece

Stage:

• Stage, W: 160 L: 250mm
• Auxiliary stage, 70x180mm
• Coaxial drive controls
• Mechanical stageX-Y Coaxial control
• Range of traverse: 120x78mm

Illumination:

• 6V/30W halogen bulb

Condenser:

• Abbe condenser with 20X phase

Buy Inverted Infinity Microscope by LW Scientific online here at Mountainside Medical Equipment.
