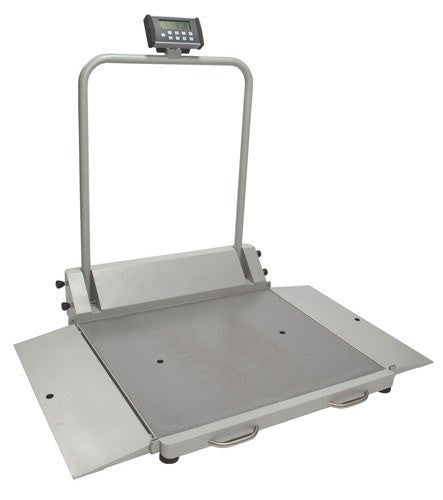

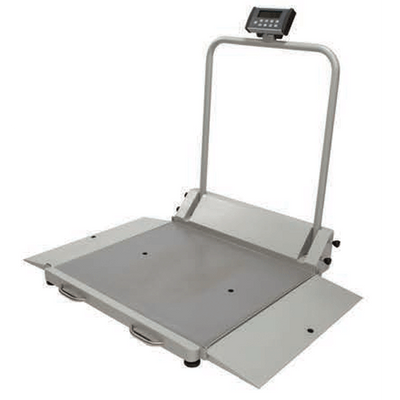

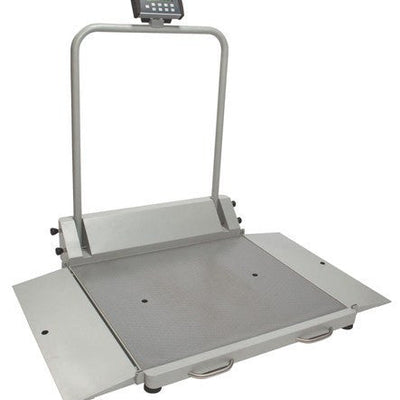

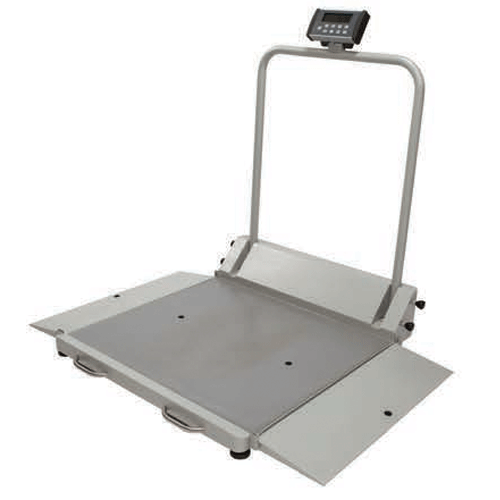

Digital Fold-Up Wheelchair Dual Ramp Scale

The Digital Wheelchair Dual Ramp Scale is designed with a wide, low-profile platform to comfortably accommodate wheelchairs and bariatric patients weighing up to 1000 lbs. This dual ramp scale is also designed for ease of use; featuring a number of built-in automatic functions, four (4) wheels for enhanced maneuverability, and it folds for more convenient portability and safer storage. This digital scale also features EMR connectivity capabilities, which enables the scale to be connected to electronic devices (via USB) for the transmission of data, leading to more accurate electronic medical records by helping reduce errors from incorrectly recording data.

Digital Wheelchair Dual Ramp Scale Features:

1. ♦Functions: LB / KG Conversion, LB / KG Lock Out, Body Mass Index (BMI), Zero Out / Tare, Hold / Release, Reweigh, Auto Zero, Auto Off
2. ♦4 Wheels for easier maneuverability
3. ♦Folding ramp for easier portability and storage
4. ♦EMR connectivity via USB
5. ♦Wide platform for bariatric and wheelchair use
6. ♦Sold by: the each

Benefits of this unit:

1. ♦Has extra large, folding ramps with wheels on both sides of the wide, low-profile platform

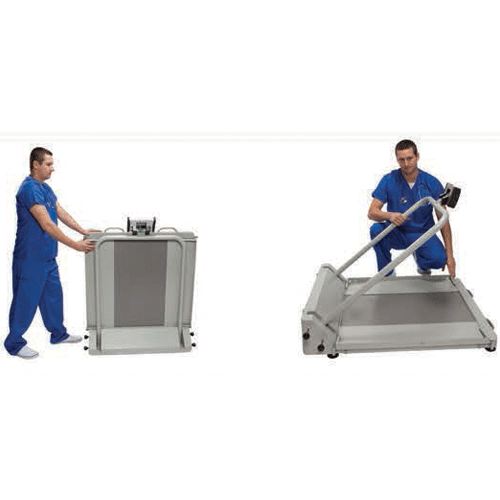

2. ♦Both ramps fold inwards for more convenient storage and portability
3. ♦Eliminates the inconvenience of needing patients to stand on their own
4. ♦Incorporates auto-zero, auto-tare, auto-reweigh, and auto-BMI calculations

Digital Wheelchair Dual Ramp Scale Specifications:

1. ♦Capacity: 1,000 lb / 454 kg
2. ♦Resolution: 0.2 lb / 0.1 kg
3. ♦Platform Size: 36" (w) x 32 1/4"(d) x 2 1/2" (h) / 914 mm (w) x 819 mm (d) x 64 mm (h)
4. ♦Ramp Size: 32 1/4" (w) x 9 7/8" (d) / 819 mm (w) x 248 mm (d)
5. ♦Display: 3/4" LCD, 180° Swivel
6. ♦Wheels: 4
7. ♦Connectivity: USB
8. ♦Power Source: 110-240V adapter included, 6 AA batteries (not included)
9. ♦2 Year limited manufacturer’s warranty
10. ♦Weight: 132 lbs.

Instructions for Use:

**Please note: These instructions are not intended to substitute the usage instructions accompanying this unit. For best results please follow all instructions located within the product manual. **

Auto Tare Function:

1. Make sure there isn’t anything on the scale

2. Turn the unit on by pressing the ON/OFF button once

3. Wait until the display screen reads “0.0” LBS or “0.0” KG

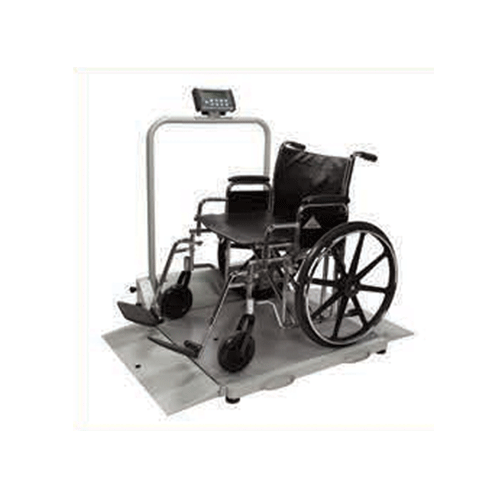

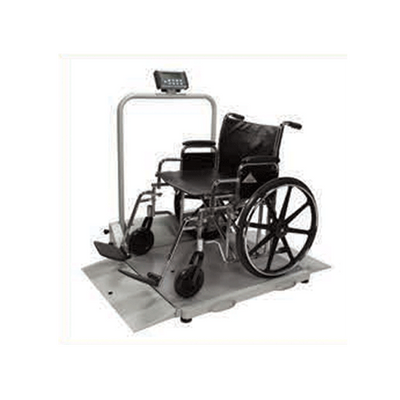

4. Place the wheelchair on the scale and wait for the weight to be displayed

5. Press the TARE button to zero out the scale. The word “TARE” will appear on the display

6. Remove the wheelchair from the scale (the display will show the negative weight of the object)

7. Place the patient and the wheelchair on the scale together (tare weight of the object will automatically be deducted from the total weight of the patient and the wheelchair)

8. Patient’s actual weight will appear on the display screen

Semi-Manual Tear Function:

1. Make sure there isn’t anything on the scale

2. Turn the unit on by pressing the ON/OFF button once

3. Wait until the display screen reads “0.0” LBS or “0.0” KG

4. Press and hold down the TARE button for 3 to 5 seconds (the word “TARE” will appear at the bottom of the display and the user will be prompted to enter a tare value)

5. Use the ►and ▲buttons on the keypad to enter the weight of the wheelchair and then press the ENTER button (the value entered will be displayed as a negative value)

6. Place the patient and the wheelchair on the scale together (the tare weight of the wheelchair will automatically be deducted from the total weight of the patient and the wheelchair)

7. Patient’s actual weight will appear on the display screen

Weighing a Patient:

1. Make sure there isn’t anything on the scale

2. Turn the unit on by pressing the ON/OFF button once

3. Wait until the display screen reads “0.0” LBS or “0.0” KG

4. Tare-out the weight of the wheelchair (by following the steps listed above)

5.  Wheel the patient (in the wheelchair) onto the scale (the patient’s weight will automatically be displayed on the LCD screen)

6. Once a weight has been displayed, it is highly recommended that a second weighing be performed by pressing the REWEIGH button

7. Once the weight measurement has been recorded, carefully wheel the patient off the scale

8. Press the ON/OFF button once to turn the scale off

Manufacturer: Health o meter Professional

Product number: 2610KL

UPC: 892076002268
